The perfect partnership.

On new-build construction sites, doors are usually one of the last things to be installed. Carefully considered delivery and installation is key – fitting into a tight work schedule, whilst being resourceful and flexible when it comes to delivery and installation, is key to a project’s success.

When it comes to commercial construction projects, there is no better partner than Teckentrup. Teckentrup has the experience and specialist knowledge to help achieve the compliance or access requirements your project needs. Add to this the combined expertise of Teckentrup and its sister company ABC Doors for installation, and you’ve got the industry’s best door manufacturer and installation service in the UK.

Read more about ABC Doors here!

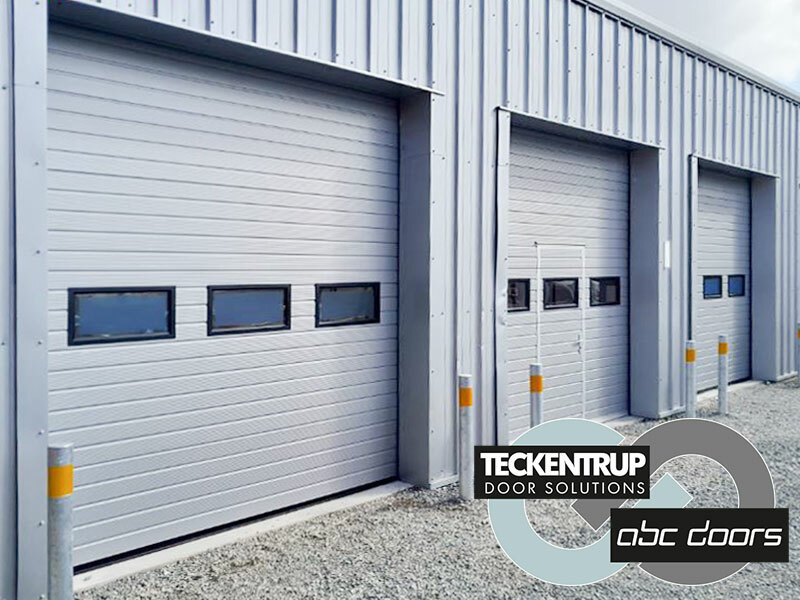

SW40 Industrial Sectional Doors At Car Workshop Facility

The brief.

Working on behalf of Hindley Contractors Ltd, Teckentrup was asked to supply three industrial sectional doors to complete a brand-new steel-framed commercial car workshop in Kidderminster. To meet the projects tight deadlines, Teckentrup provided a fast-tracked production and transport service to ensure quick delivery of the doors to the site ready for installation.

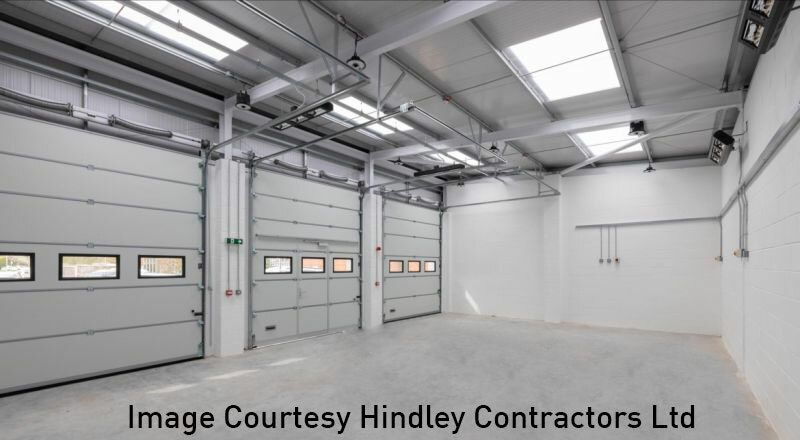

Image Courtesy Hindley Contractors Ltd

The solution.

The design of our sectional doors, together with a host of options, offers flexibility allowing our doors to be adapted to meet most requirements. For seamless access/egress of vehicles into the car workshop, Teckentrup supplied three SW 40 sectional doors – distinguished by its robust construction using a 40mm thick double-walled door leaf design.

Teckentrup industrial doors incorporate decades of refinement:

Size:

  • Width, maximum 8000mm
  • Height, maximum 6000mm
  • Door leaf weight approx. 12 kg/m2

Performance:

  • Thermal insulation (25 m2 door area), Ud W/m2K 1.2*
  • High-quality steel panels, 40 mm thick.
  • Double-walled, pu insulating foam.
  • Resistance against wind loads class 3 up to 5000 mm*
  • Air permeability class 3.
  • Water penetration resistance class 2/3.
  • Noise insulation value Rw in dB 24.
  • Fire performance per EN 4102, door leaf element building material class B2.

*Without wicket door (Ud W/m2K 1.4 with)

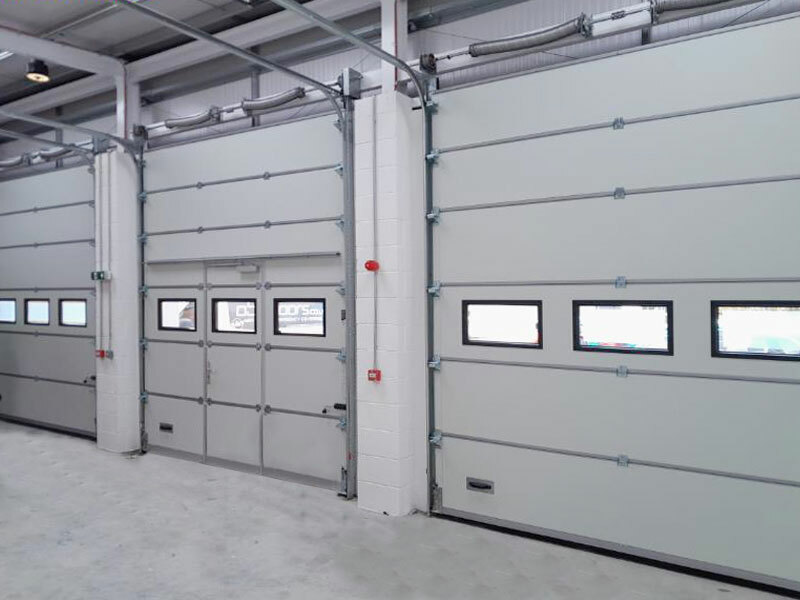

The doors required manual operation, so each was fitted with a compact geared chain hoist 4:1 reduction, positioned to the right-hand side of each door. To gain access to the workshop on foot without opening the sizeable sectional door, the centre door features a wicket door.

Read more about industrial sectional doors here!
SW 40 Industrial Sectional Doors

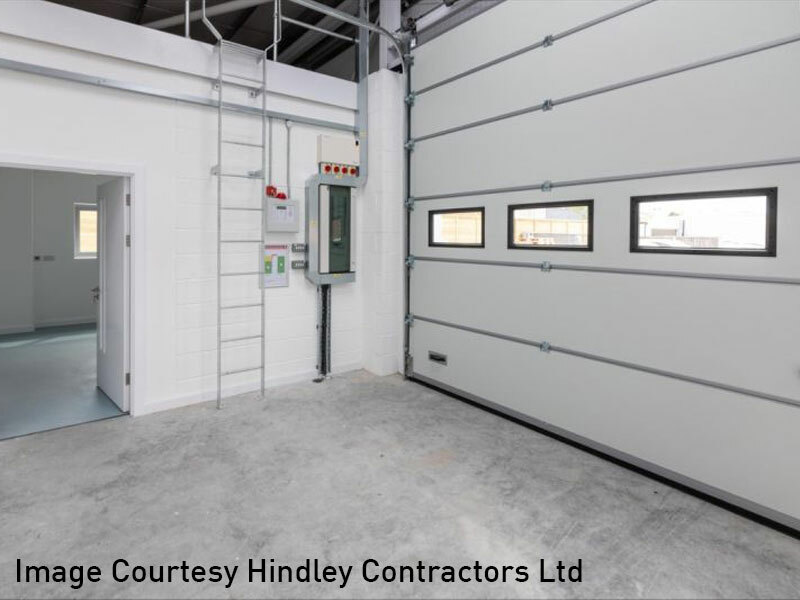

Image Courtesy Hindley Contractors Ltd

The install.

ABC Doors was on hand to provide compliant, high-quality install of the Teckentrup product to the building’s openings. ABC engineers completed the install of all three doors in a single day, working efficiently, safely and most importantly, without disruption to the site.

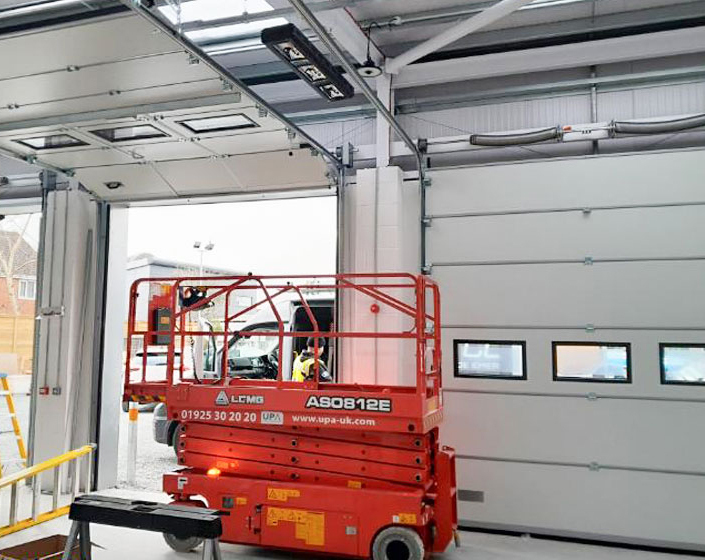

Safe working at height using a scissor lift

Do you need doors for your next commercial construction project?

Talk to the Teckentrup team!

Get in touch!
