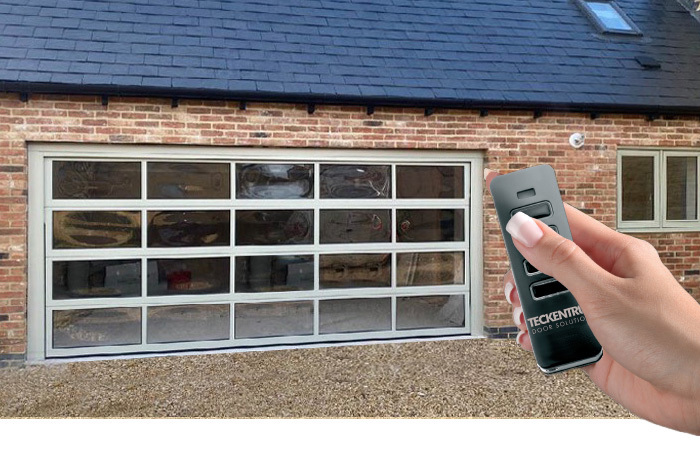

Multiple mullions give the CarTeck GSA Vision sectional garage door an ultra-contemporary, minimalist aesthetic. Choose privacy and light with satin or frosted glazing.
These automated sectional garage doors have sections made from 40mm hollow aluminium profiles, with 20mm scratch resistant, polymer double glazing. The doors also employ the same market-leading sectional garage door lifting gear used on the standard CarTeck range with its concealed lifting springs and quiet smooth action.
Matching side doors available!

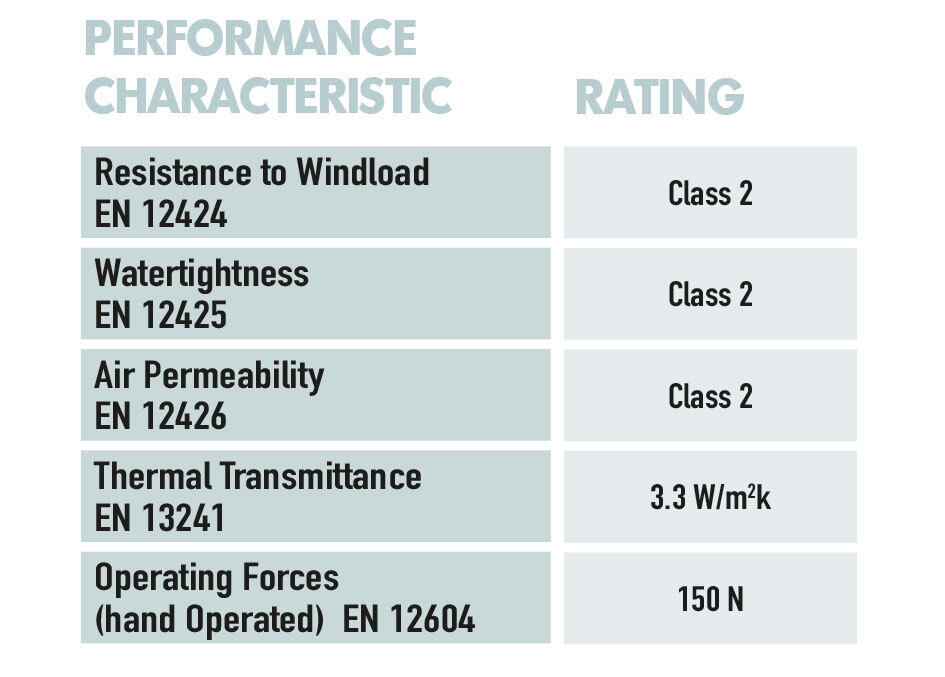

As part of the CE marking process, each product must have its performance provided for a defined set of characteristics to allow fair comparison between products from different manufacturers. Other characteristics can also be included, if relevant to a door’s performance. The following tables show the performance characteristics of CarTeck GSA Vision sectional garage doors.
Our doors and openers are independently tested and certified to all current safety legislation and carry a CE/UKCA mark.
What level of security can I expect from my GSA sectional garage door?
See the ‘Security’ section of our Honesty Page!
What thermal performance does my GSA sectional garage door have?
See the ‘Thermal Performance’ section of our Honesty Page!
What level of drafts & water ingress can I expect from my GSA sectional garage door?
See the ‘Light, drafts & water ingress’ section of our Honesty Page!
Can I expect the same level of performance from my GSA sectional garage door compared to my front door?
See the ‘What can I expect from my door’ section of our Honesty Page!
There's an array of possible combinations of finishes making it easy to adapt the sectional garage door to suit your home.

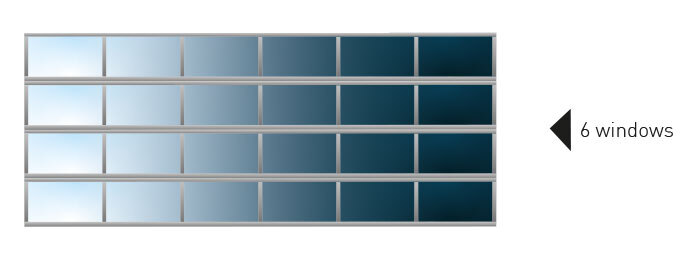

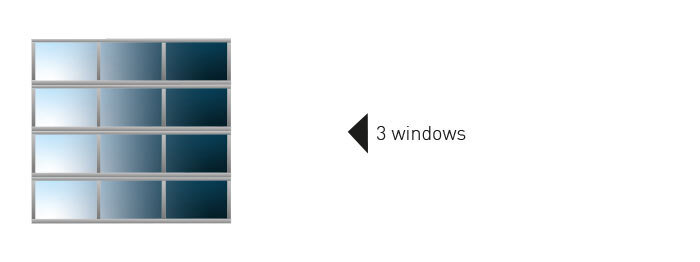

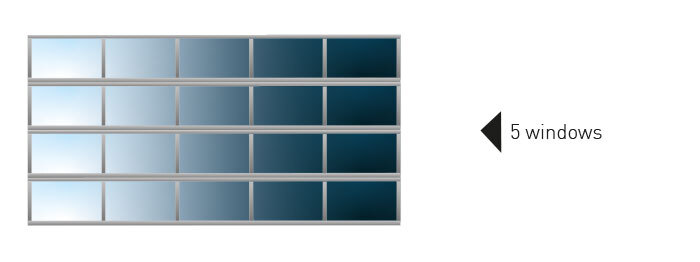

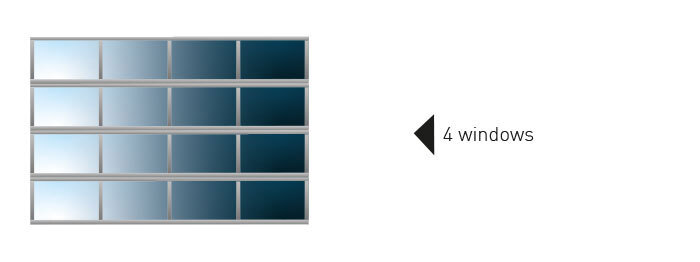

The number of vertical mullions is dependent on door width and is shown below:
Doors up to 2235mm wide
Doors up to 2438mm wide
Doors up to 3353mm wide
Doors up to 4420mm wide
Doors up to 5500mm wide
The number of sections is dependent on door height and is shown below:
4 sections Doors up to 2280mm high
5 sections Doors up to 2835mm high
6 sections Doors up to 3000mm high
Every door is available in a selection of colours as shown in the grid below.
Direct Sunlight Where doors are exposed to direct sunlight, dark colours should be avoided.
How will my GSA sectional garage door’s colour be affected by UV exposure and are dark colours suitable for garages with a sunny aspect?
See the ‘Colours’ section of our Honesty Page!
RAL References RAL references for colours are provided as a guide only to the nearest similar RAL colour. Colours will not match to other RAL finishes due to different coating processes, gloss levels, substrates and textures. Similarly, special RAL, BS or other colours will not be a precise match.
Colour Accuracy Colours shown are limited in accuracy by the viewing screen - samples should always be requested.
Frame Legs, Headers & 3D Profiles All frame legs, headers & 3D profiles are available in smooth finish only.

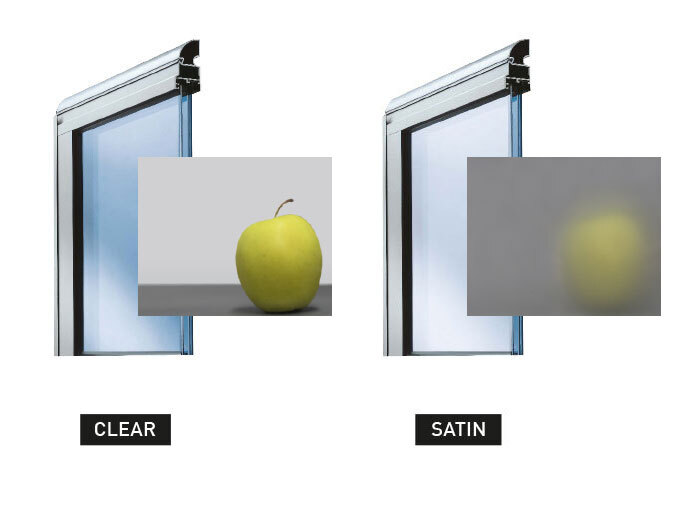

Windows are made from double pane scratch-resistant polymer.
The warranty periods below only apply to products that have been correctly installed as per the instructions, maintained by a Garage Door Specialist and operated and cleaned in accordance with the requirements set out in the operating and maintenance sections of instructions and labels.
2-year manufacturer’s guarantee
5-year manufacturer’s guarantee
10-year manufacturer’s guarantee
The guarantee does not apply to doors that are subjected to extreme conditions, e.g. corrosive influences resulting from use in a coastal climate with high salt content.
How can cleaning my door prolong its life?
For a more in-depth look at cleaning your GSA sectional garage door, see the ‘Cleaning’ section of our Honesty Page!
I live in a coastal area, what does that mean for my GSA sectional garage door?
See the ‘Coastal locations’ section of our Honesty Page!

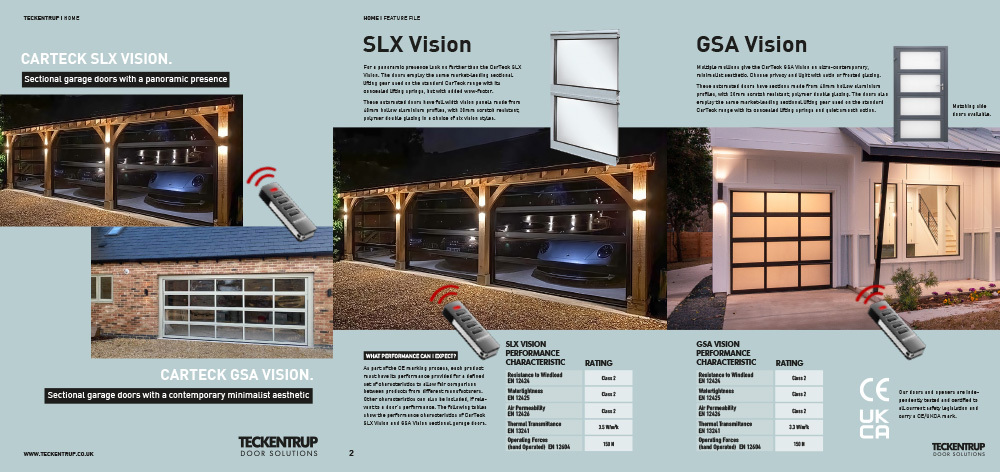

If you'd like to learn more about our range of Sectional Garage Doors, download a copy of our latest brochure. Use our Installer Search below to find your nearest approved installer.
