Core Performance Characteristics

Exterior doors must be CE Marked. In addition to conforming to weathering, wind resistance and air permeability standards, steel doors located on external elevations must also be designed to withstand anticipated usage levels, risk of physical attack and be fitted with devices that safely control the opening and closing sequences.

Teckentrup 62mm insulated steel doors are heavy-duty products suitable for high traffic and exposed external, high wind locations.

  • Certified and CE marked in accordance with EN 14351-1 Exterior Doors
  • Openings up to 3000mm x 4000mm
  • Polyester Powder Coat finishes in any RAL colour
  • Available in a stainless-steel construction and with vision panel options

The Teckentrup 62 modular system allows for 1000s of possible combinations, making the complex simple. Find out more



Performance excellence.

Versatile capability.

Energy losses usually occur on doors with differential ambient temperatures at each face, especially outer doors. Double-skinned, heat insulated steel doors from Teckentrup provide effective thermal protection and are also robust and secure.

Teckentrup heat insulated multi-purpose doors are made of steel and, with multi-functional protection, can be used in almost all industrial, commercial, public, agricultural and domestic areas.

Steel and stainless steel versions as well as a wide range of designs ensure the individual realisation of each buildings requirements. Glazing options, transformer grilles and ventilation grilles are available to meet all functional and aesthetic demands. Sophisticated safety and security details, such as the integration in master key and surveillance systems, provide additional protection.

Teckentrup offers a complete design, manufacture and installation solution.

Teckentrup steel exterior doors and doorsets have been tested to:

  • EN 14351-1 Exterior Doors
  • European Security Standard EN1627 achieving RC2, RC3 & RC4 ratings
  • LPS 1175 Security Standard achieving SR1, SR2 & SR3 ratings
  • EN1634-1 achieving 120 minutes fire integrity and 90 minutes fire insulation
  • European Standards EN1628 & 1629 for static and dynamic loading
  • ISO12567-1 achieving a UD value as low as 0.83 W/m2/K° but typically 1.3/4 W/m2/K°
  • EN12207 for air permeability achieving Class 2/4* for a single and Class 1/3* for a double leaf door * Single point/Multi-point locking
  • EN12208 for water tightness achieving Class 7A for a single and Class 6A for a double leaf door
  • EN12210 for wind resistance achieving Class 3/5 for a single and Class 1/3 for a double leaf door
  • A 62mm insulated door set, fitted with heavy duty ‘KO’ hinges has been tested to EN1191 for repeated opening and closing to C5 level – 200,000 cycles






We live in your world...

Delivering a project from conception to handover is an undertaking that requires many elements to work together...

Teckentrup understands the language of complex projects; how to design a solution for the building not just a door, but how to provide drawings in the right way, how to deliver the door, how to manage project timeframe shifts, how to work seamlessly within the contract process and provide product of certified and documented capability.

Project Engineer

“We have to get the job complete and I need you to play your part”
– Project Engineer

“We become "your door department", ensuring potential issues are headed off and installation runs to plan.”

Teckentrup Logo
Procurement QS

“Only bring me compliant product!”
– Procurement Quantity Surveyor

“Teckentrup ensures products are tested to the performance standards claimed and are suited to the performance specified.”

Teckentrup Logo
Project Director

“Bring ideas and solutions!”
– Project Director

“We are your door experts, but won't complicate things. We'll make sure your team delivers a trouble free door package.”

Teckentrup Logo

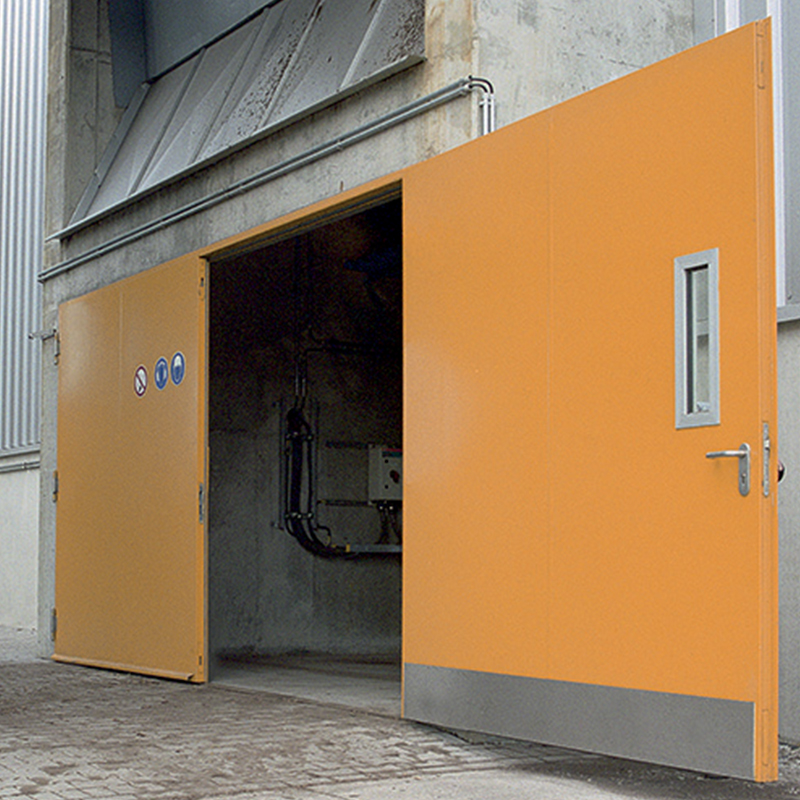

Very Large Double Steel Doors With Vision Panels

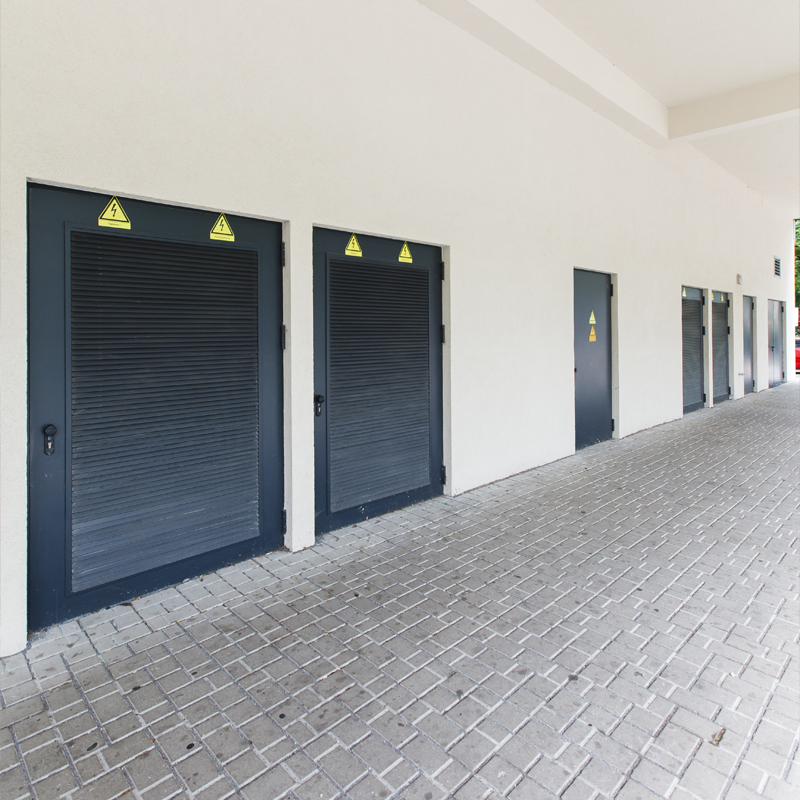

Large Plant Room Steel Doors With Louvres

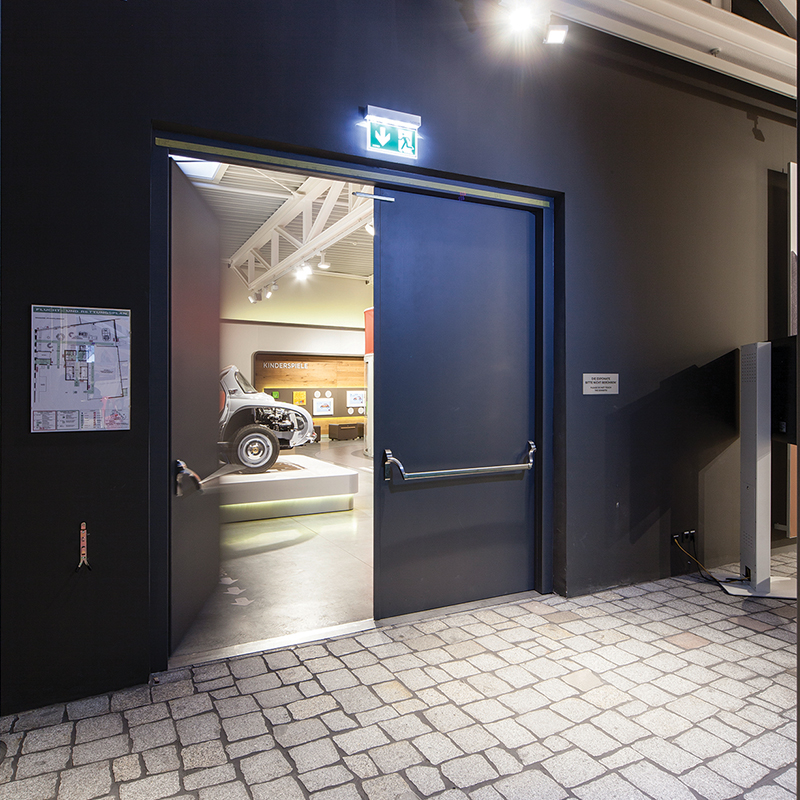

Double Steel Exit Doors With Panic Furniture

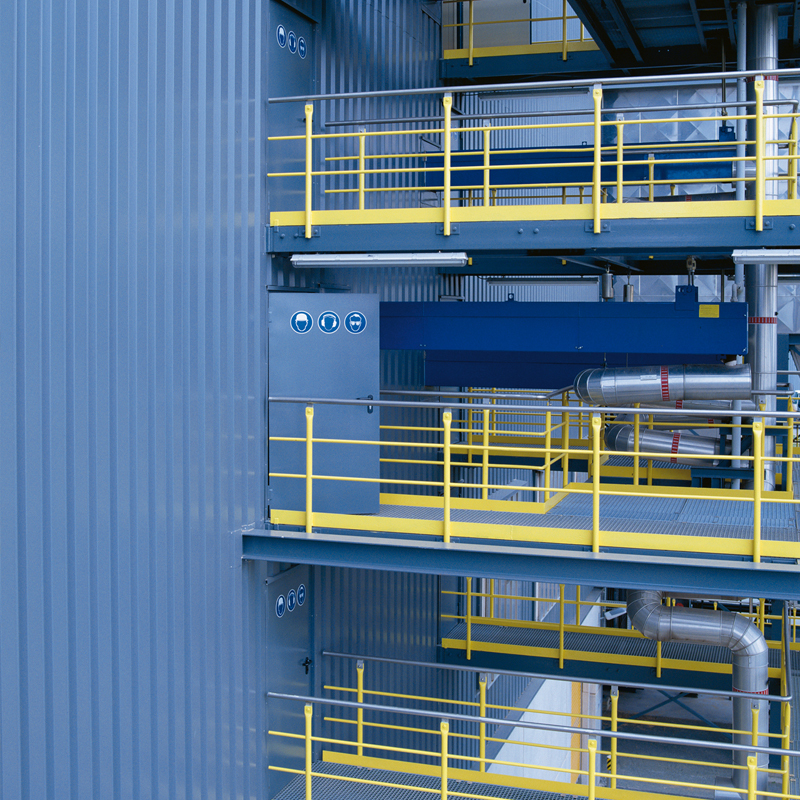

Access Steel Doors On Factory Gantries with Acoustic And High Frequency Closers
Thermal Imaging Of A Steel Doorsets With Thermal Break
Thermal Imaging Of A Steel Doorsets Without Thermal Break

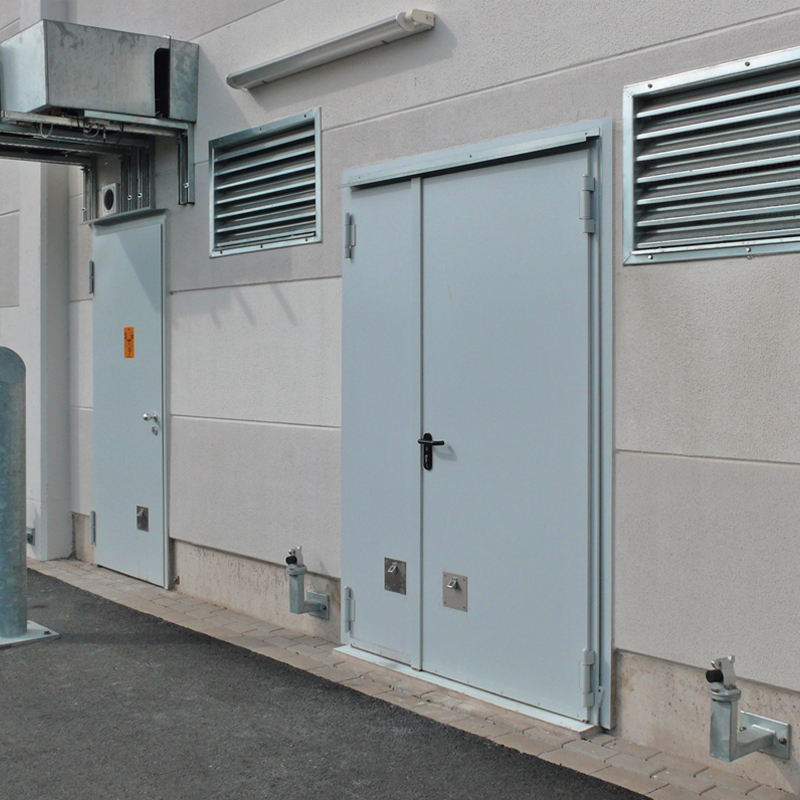

High Performance Insulated Steel Doorsets

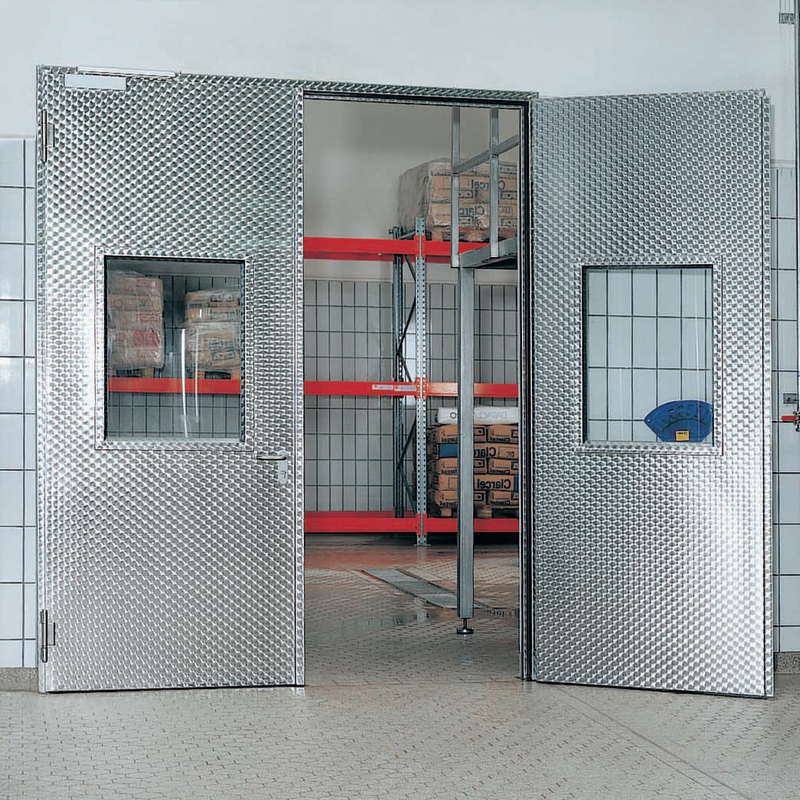

Stainless Steel Door Access Doors With Large Vision Panels

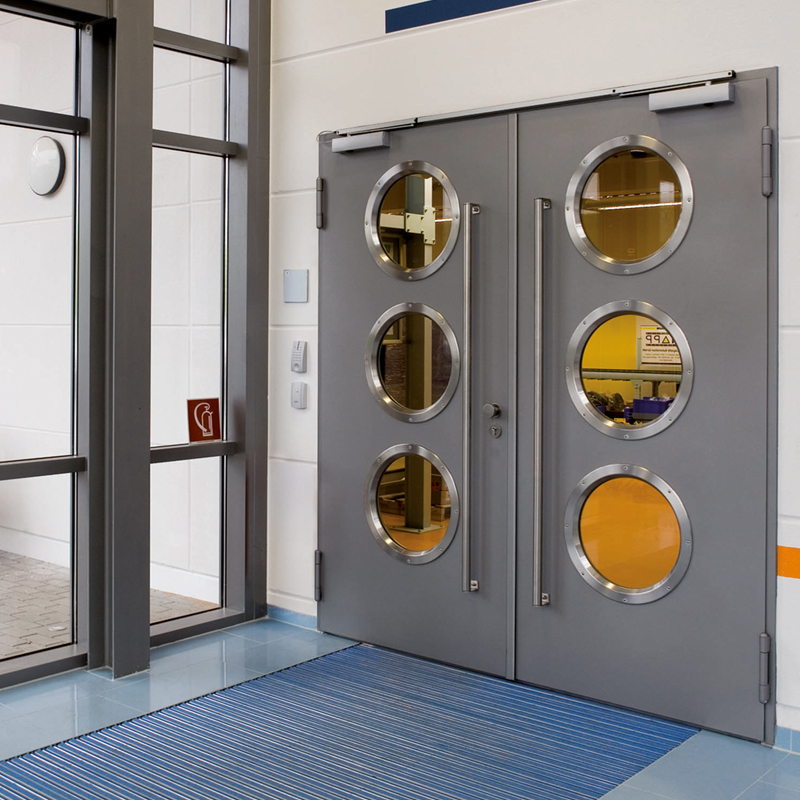

High Frequency Closers Fitted To Deparetment Entrance Doors With Porthole Windows And D Handles

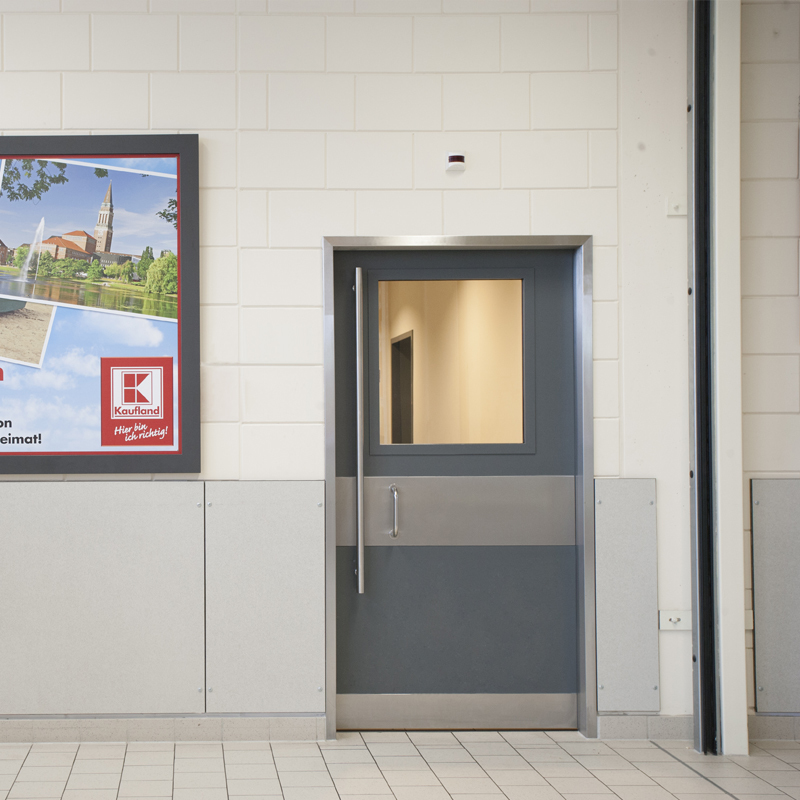

Steel Access Door With Vision Panel and Pull Handles
Very Large Double Steel Doors With Vision Panels
Large Plant Room Steel Doors With Louvres
Double Steel Exit Doors With Panic Furniture
Access Steel Doors On Factory Gantries with Acoustic And High Frequency Closers
Thermal Imaging Of A Steel Doorsets With Thermal Break
Thermal Imaging Of A Steel Doorsets Without Thermal Break
High Performance Insulated Steel Doorsets
Stainless Steel Door Access Doors With Large Vision Panels
High Frequency Closers Fitted To Deparetment Entrance Doors With Porthole Windows And D Handles
Steel Access Door With Vision Panel and Pull Handles

Frames & Hardware

Clever framing solutions and finishing touches

As a project manager, the success of a major initiative often depends on a small detail.

Teckentrup's frame solutions allow for installation in all site scenarios including variable reveal depths and flush finish with wall renders. The four main types are:

  • Block frames with captive seals.
  • Corner frames with captive seals, concealed fixings with adjustable screws and only one fastening point.
  • Corner Counter frames with captive seals and concealed fixing of the counter frame with special fold anchors.
  • Closed frames with captive seals.

Teckentrup can advise on the right solution and their suitability for applications such as fire, acoustics, etc.

The Hardware, accessories, vision panels, louvres, etc., are all selected to suit application, life cycle value requirements and other criteria, against which Teckentrup can provide certification. Advice on selection and integration with access and building systems such as fire and security is also part of our solution based approach.

Corner Counter Frame Rectangle
Block Frame
Corner Frame
Closed Frame

The modular steel doorset

We have a range of steel doorsets that cover multiple requirements making it easier to find a solution that covers all of your requirements in a single product.
